Valve cover adapter 1/2 thick 7 to 4 bolt Chevy 194 230 250 292 Inline 6

CNC Machined

$ 139.73

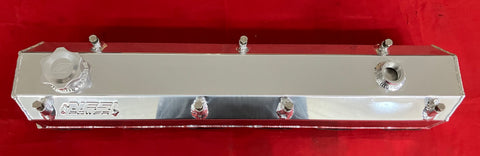

Chevy Inline six 230 / 250 / 292 head adapted to 235 valve cover

Used not only for its unique vintage look but it offers huge internal space for roller rockers, stud girdle, and over size competition valve springs and retainers.

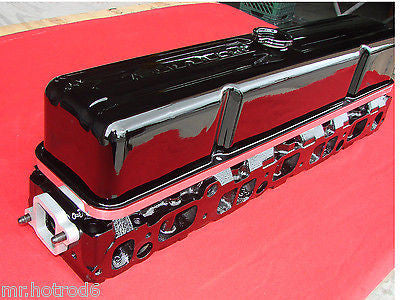

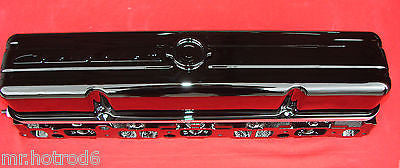

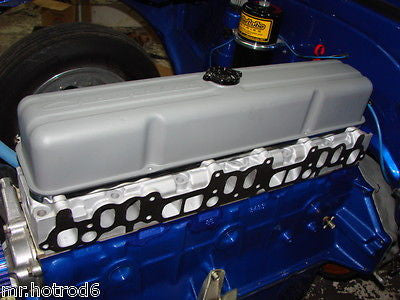

CAD designed, CNC machined from a slab of 6061 T-6 billet aluminum. The 6 cylinder Chevrolet valve cover adapter allows you to install the second generation 235 CID 1954 thru 1962 Chevrolet 4 bolt valve cover to any non integrated 1962 and up 7 bolt cast iron cylinder head. Two stock style gaskets will be needed.

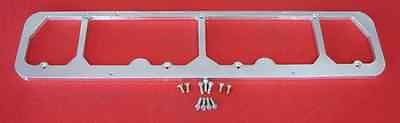

All install stainless steel mounting hardware is included.

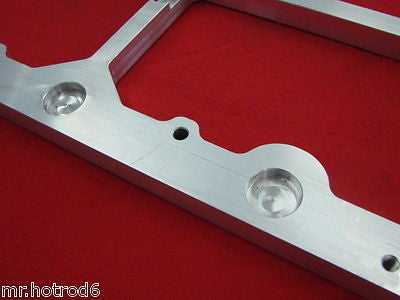

The CNC program was modified from the last production run to machine extra space for larger diameter push rods and spot face / counter bored bottom side for head stud nut clearance with the use of 6 or 12 point nuts.

   If you are using an original cast iron water outlet a front outlet spacer will be needed.


           Mrhotrod6 Motorsports; For when only the finest Quality will do
